MOD.4 EVO IL (K67 2023+)

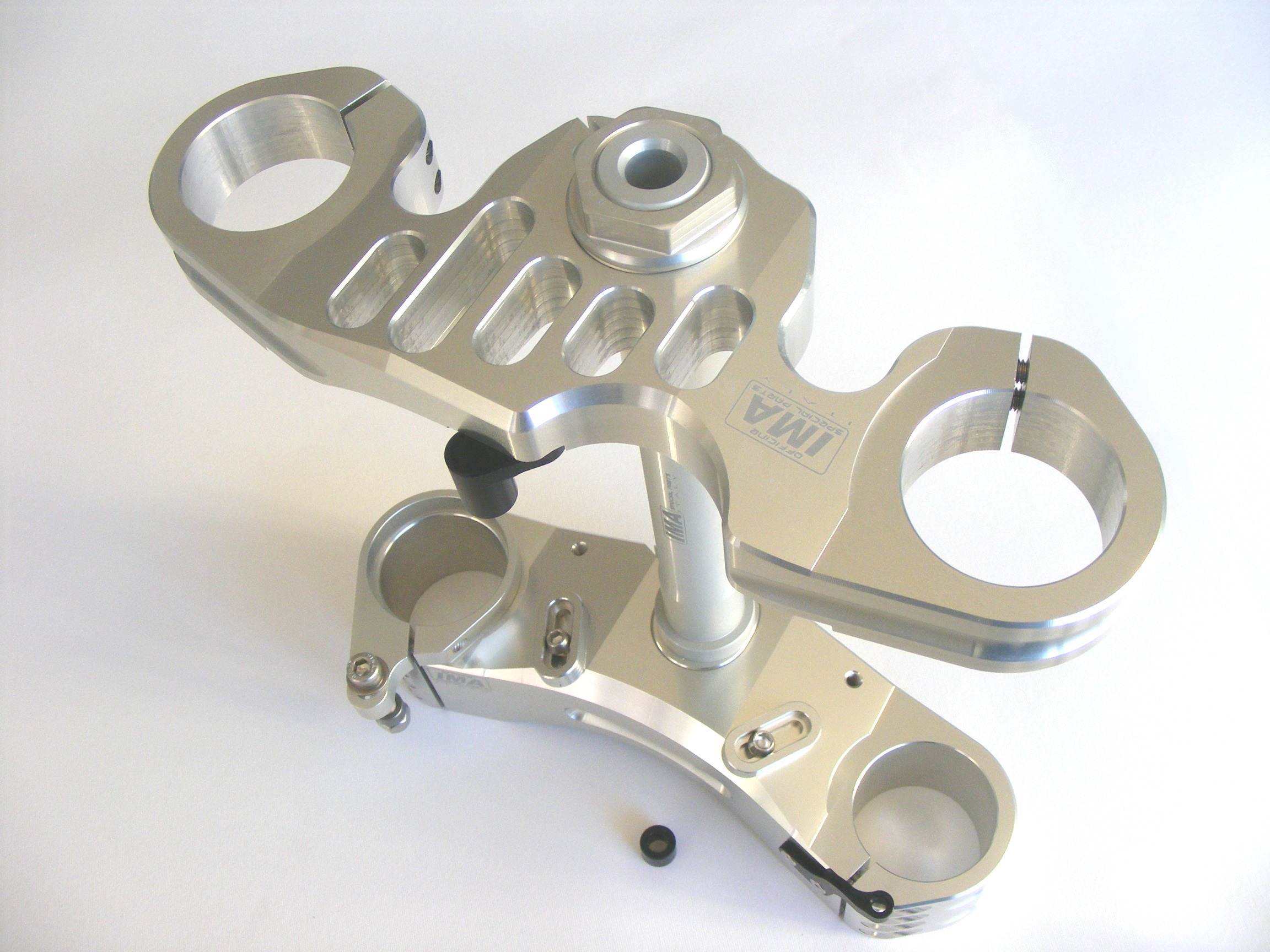

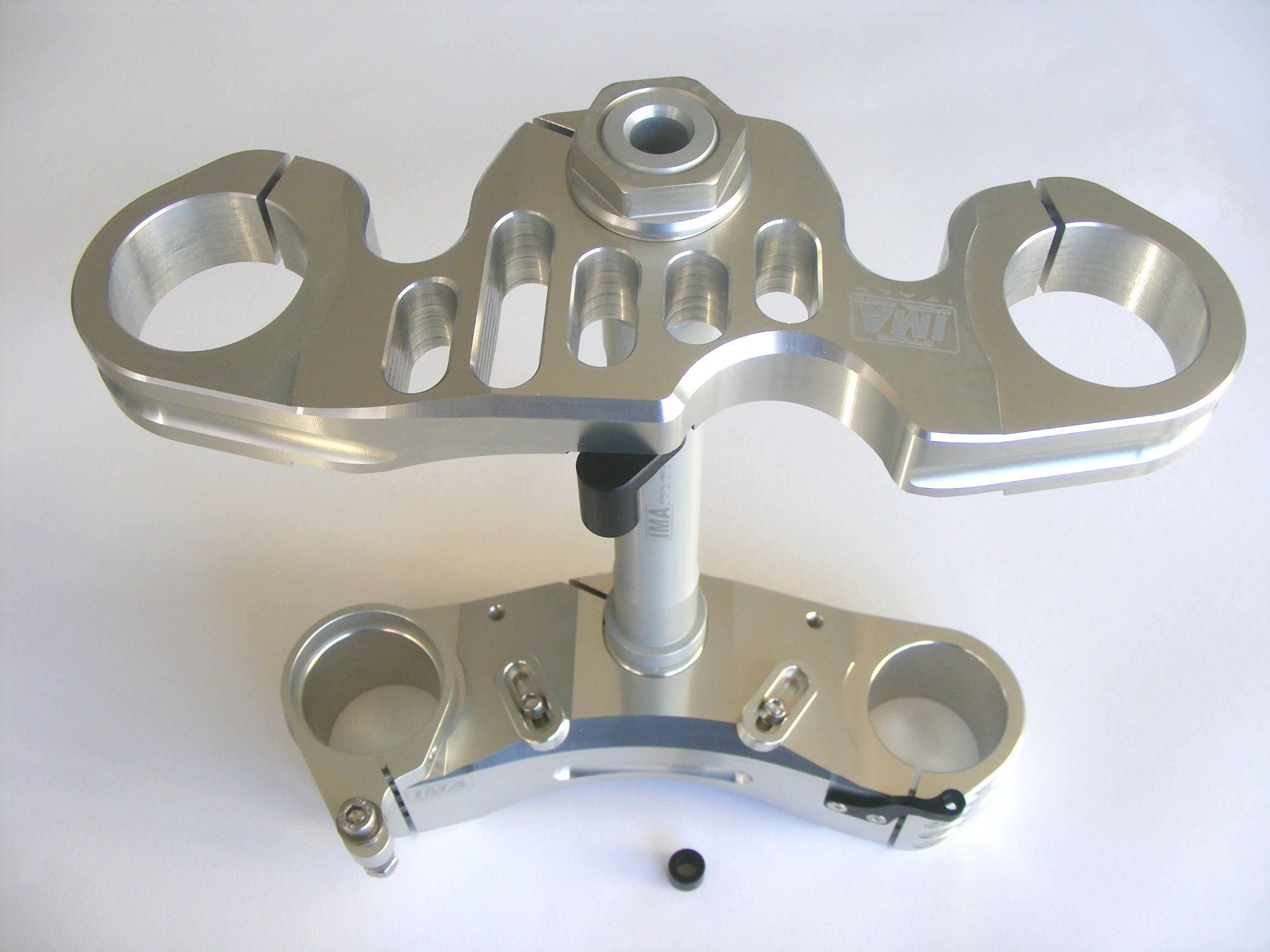

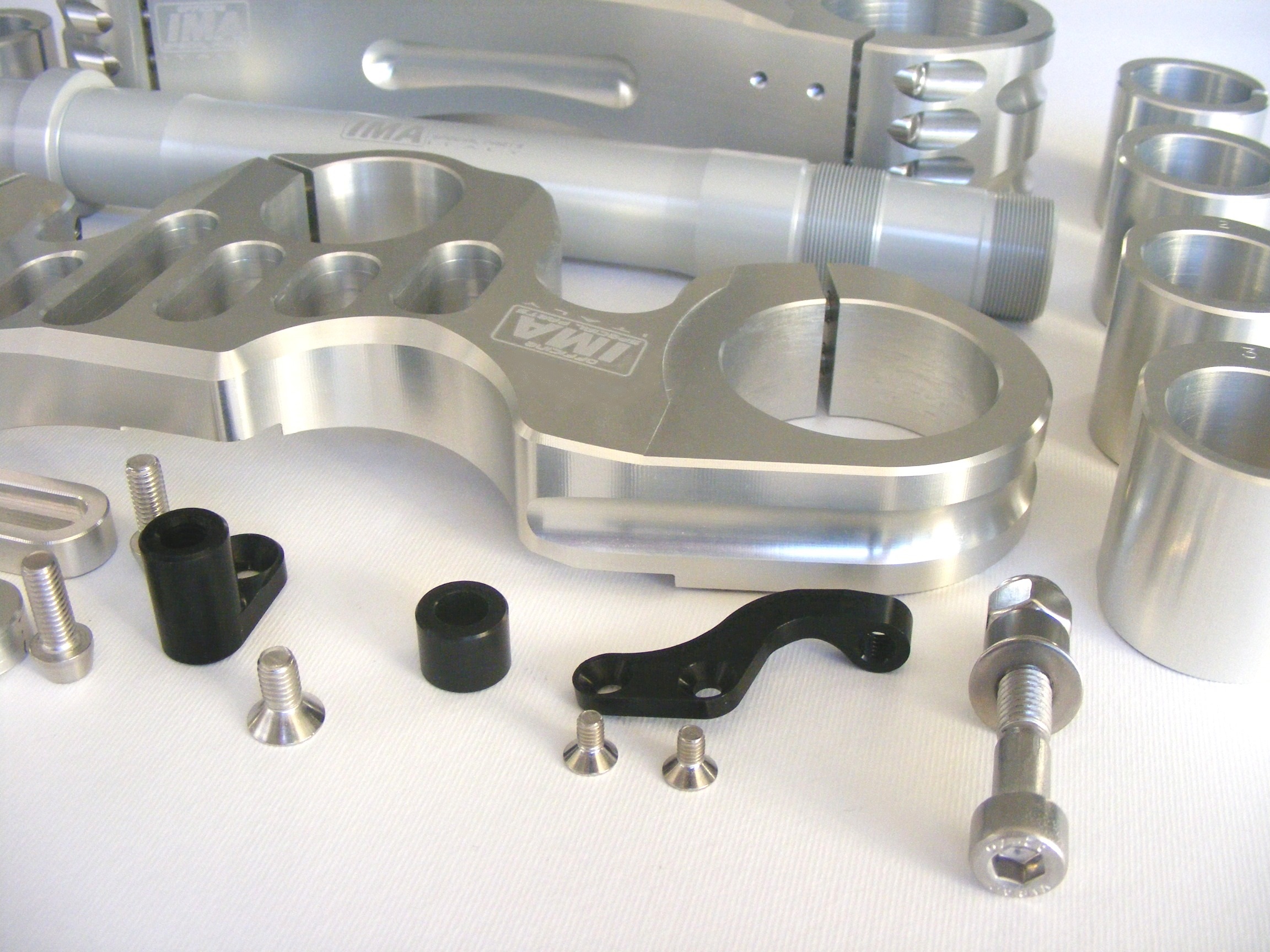

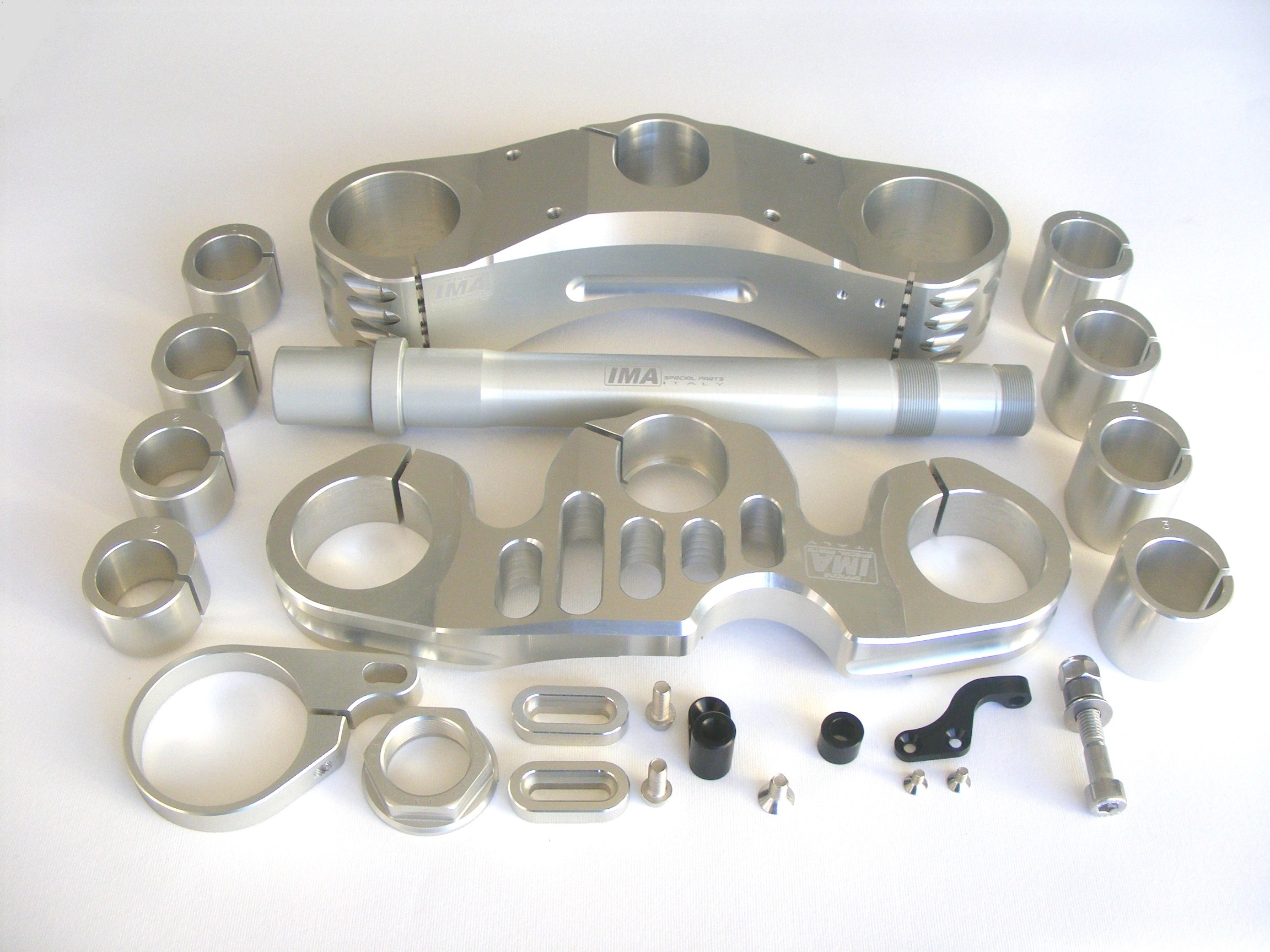

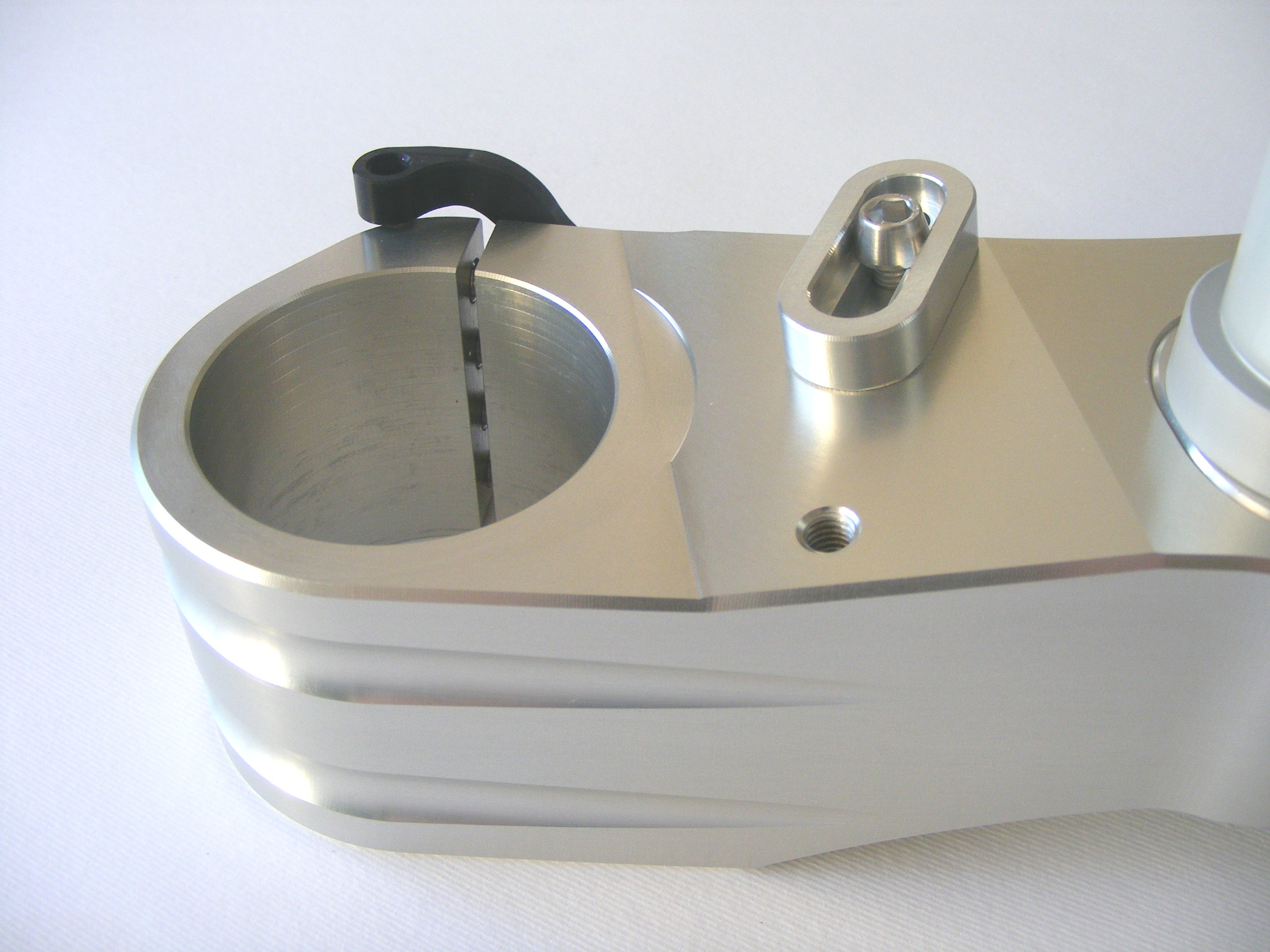

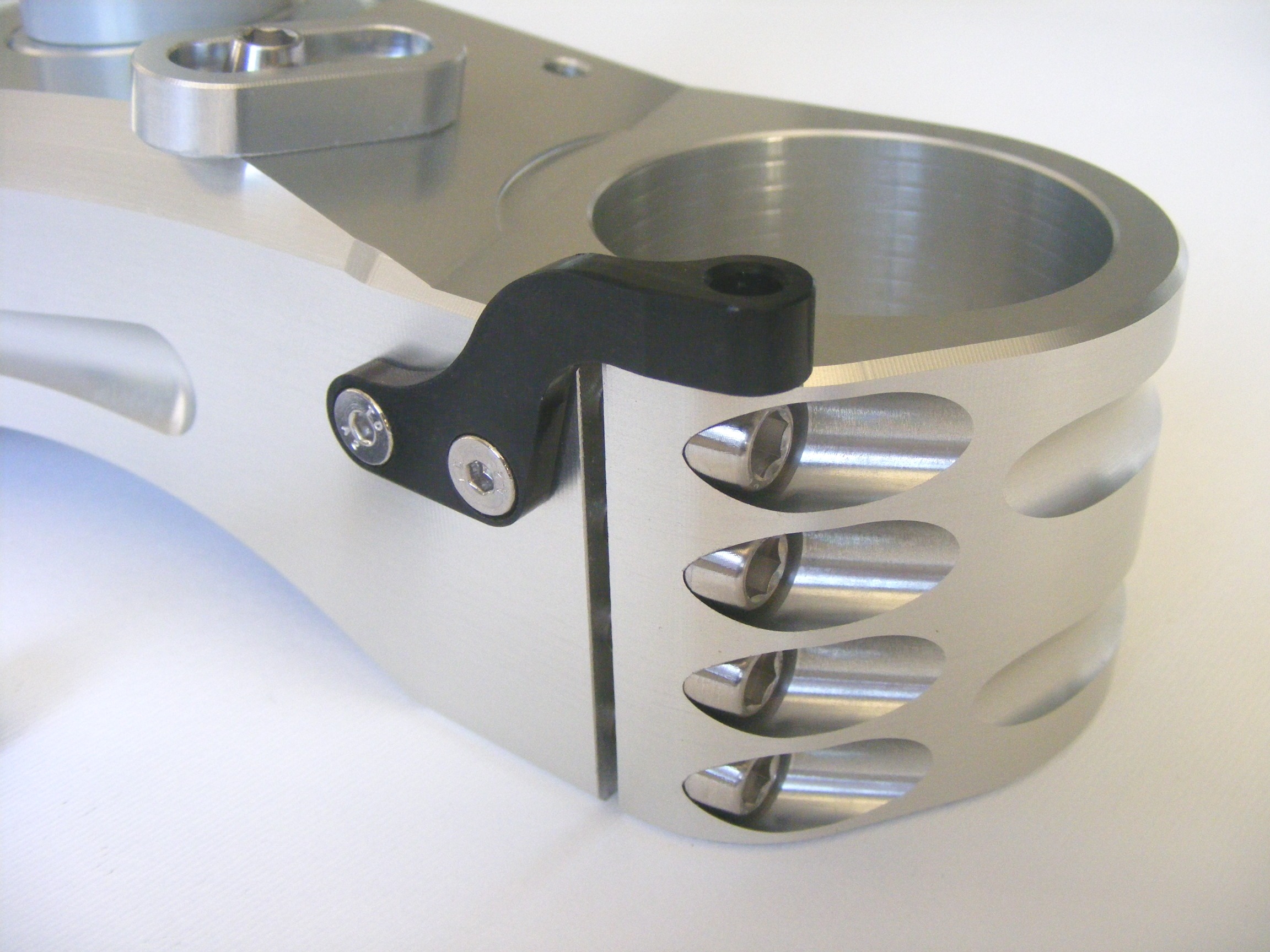

Billet Adjustable triple clamps, aimed at track enthusiast, developed to respond to the most recent studies on the chassis structural dynamics of new motorcycles. Thanks to their specific design/shape and to the higher material features, they work effectively in reducing the Chattering effect, conferring more precision, stability and cornering speed. Also, provided with 4 sets of bushings, they allow to adjust the offset modifying the trail without moving the rake of the bike, in order to set the bike up to the personal attitude or to the track features. Adjustable steering limiters, proviision for steering damper and Slide Control Sensor mount. OEM key barrel seat.
The Mod.4 IL is proposed in 2 versions:
Base setup (fixed offset)
Racing setup (adjustable)
Colors:
|
Black |
Titanium |
Aluminium |
| Suitability: | 2023+ BMW S1000RR (K67) |
| Material: | ERGAL 7075 |
| Offset: | Adjustable 25 to 31 |
| Recommended fork bolts tightening torque: | 7,5 Nm greased |
| Sequence: | Top clamp 1,2,1,2,1 Bottom clamp 1,2,3,4,1,2,3,4,1,2,3 |
| Recommended top nut tightening torque: | 60 Nm |
| Note: | Steering lock function NOT supported. Racing derived product, the manufacturer disclaims any responsibility on the possible use different from racing on tracks |
| Accessories: | Lower tapered roller bearing, Lower dust seal, Mod.5F Clipons |
